Technical Specifications
| Humidification Capacity | 9 L/h |
| Recommended Coverage Area | 80–150 m² |
| Rated Power | 1200 W |
| Control Mode | Manual Humidity Control |
| Water Supply Method | Piped water supply & External tank |
| Mist Outlet Diameter | 2 × 110 mm |
| Maximum Duct Length | 10–13 m |

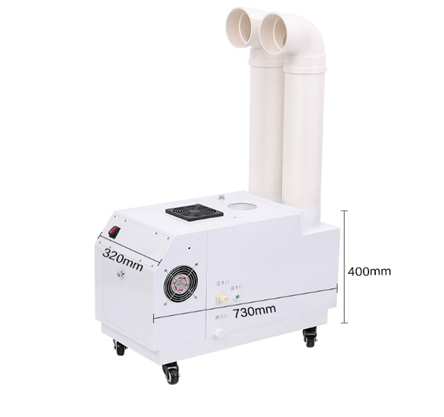

| Dimensions (L×W×H) | 730 × 320 × 400 mm |
| Net Weight | 30 kg |
| Atomizing Heads | 3 × 10 heads |
Note: Applicable area varies with ceiling height, ventilation, and target RH.
Installation & Operation

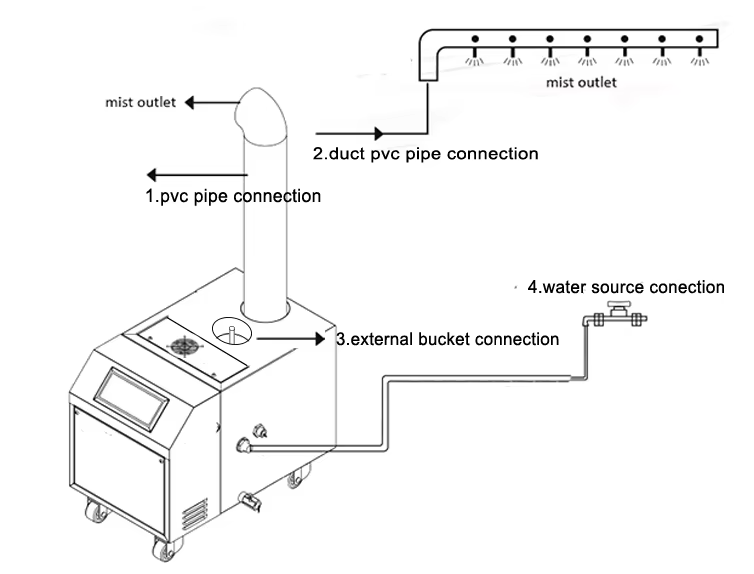

- Place unit near target area or connect to ducting for directional delivery
- Connect to direct water line for continuous operation
- Set target RH (if auto control is installed) and verify mist distribution
- Routine maintenance: clean tank/atomizers per local water quality
