3-Head Ultrasonic Mist Maker Module (MS-03)
MS Series • OEM Integration • IP67 • CE • 1.7 MHz
1.5–1.8 L/h • DC 36V • 120 W • Field‑serviceable (replaceable mist discs)
Request a Quote Talk to an Engineer Back to MS Selection
Switch Model:← PrevNext →
Mist Output
1.5–1.8 L/h
Input Voltage
DC 36V
Rated Power
120 W
Atomizing Heads
3
Product Images

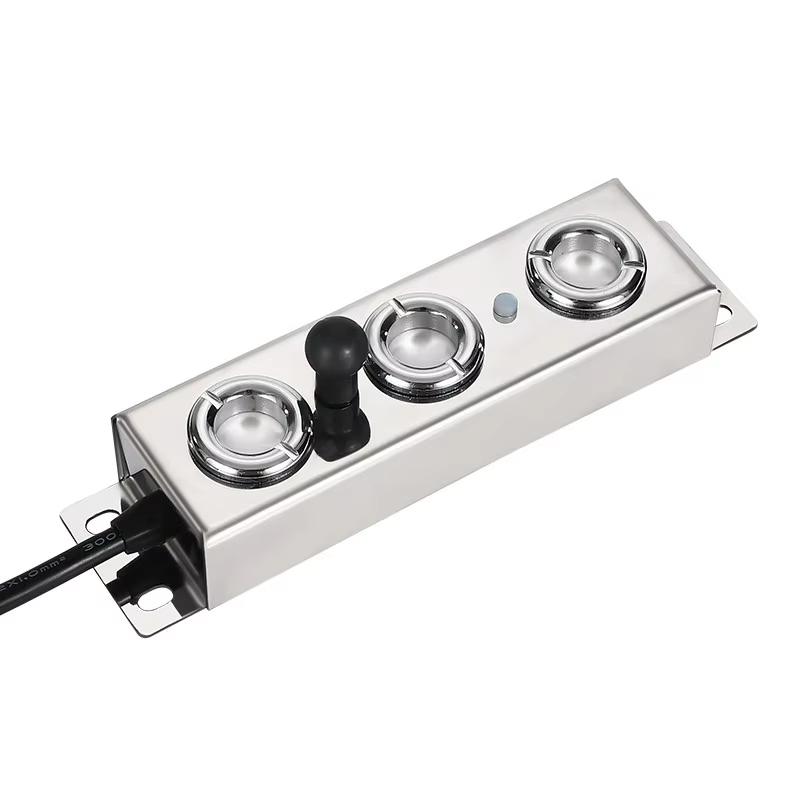

MS-03 ultrasonic mist maker module photo
Working Video

Key Performance (engineering)

  • System scale: Small multi‑point coverage
  • Distribution: Up to 3 outlets / 3 mist points (short manifold)
  • Best fit when: you need better uniformity than MS‑02 without increasing tank size much
  • Upgrade path: MS‑04/06 for more outlets and higher total load

Where MS-03 fits best

MS‑03 is used when a compact system needs three mist points for better coverage than MS‑02—ideal for small racks, short manifolds, or multi‑point OEM chambers.
3‑point distribution in compact tanks
Three mist points to reduce local wet spots and improve uniformity.
Small rack / shelving zones
Even RH across a small shelf span or narrow rack segment.
Short manifold (3 outlets)
Simple 3‑branch distribution for close zones / short duct runs.
OEM chambers with multiple corners
More balanced RH in small test boxes or inspection enclosures.
Tip: For higher total output or more outlets, move to MS‑04 (4‑head) and above.

Parameter Specification

ModelMS-03
Mist Output1.5–1.8 L/h
Operating Frequency1.7 MHz ±5%
Input VoltageDC 36V
Power Consumption120 W
Recommended Water Depth6 cm
Atomized Droplet Size (SMD)Typical ≤ 5 μm
Waterproof RatingIP67 (304 Stainless Steel Housing)
Continuous Duty Operation24 hours supported
Ceramic Transducer Lifetime5000+ hours
CertificationCE Certified (EMC & LVD compliant)

Integration Notes (engineering)

  • Maintain the recommended water depth for stable atomization and consistent mist output.
  • Use clean water and include filtration to reduce scaling and extend transducer service life.
  • For manifolds/ducts: keep runs short where possible, avoid sharp bends, and balance branches for uniform delivery.
  • When designing multi‑outlet systems, specify target RH, airflow, tank size, outlet count, and duty hours—we can recommend the right model and layout.
Fast selection support: send tank size, water depth, airflow, target RH, outlet count, and duty hours — we’ll propose the right model and layout.
