Technical Specifications
| Humidification Capacity | 15 L/h |
| Recommended Coverage Area | 150–200 m² |
| Rated Power | 2800 W |

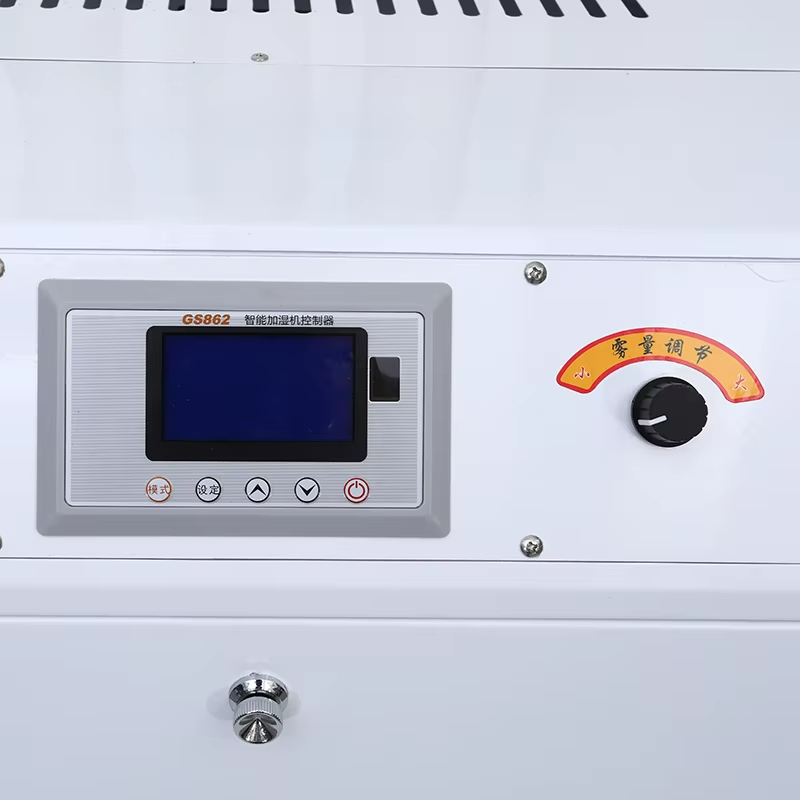

| Control Mode | Intelligent Humidity Control |
| Water Supply Method | Piped water supply |
| Mist Outlet Diameter | 3 × 110 mm |
| Maximum Duct Length | 16–20 m |
| Dimensions (L×W×H) | 920 × 540 × 600 mm |
| Net Weight | 45 kg |

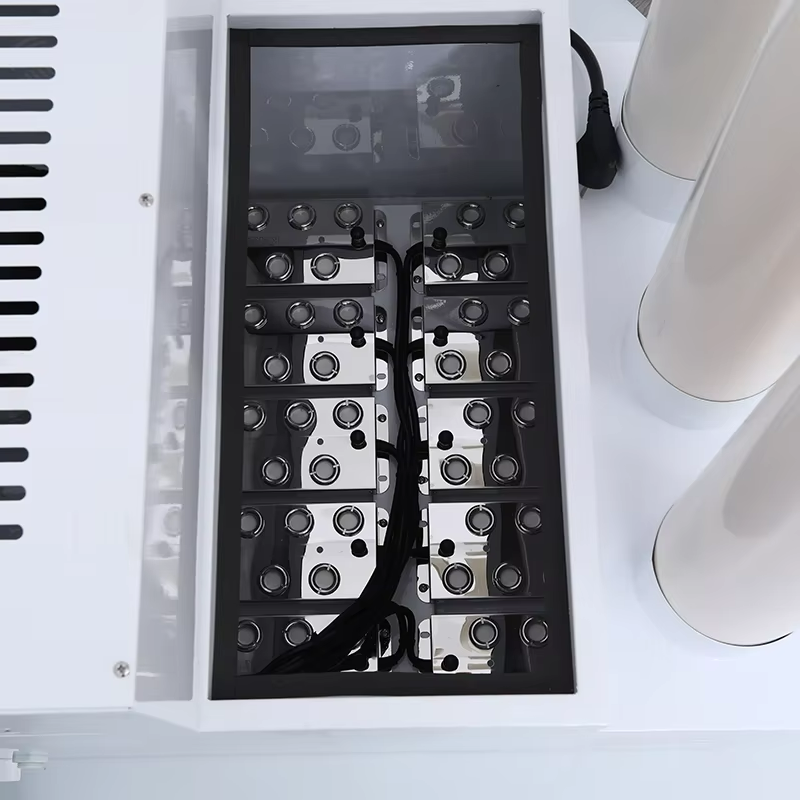

| Atomizing Heads | 6 × 10 heads |
Note: Applicable area varies with ceiling height, ventilation, and target RH.
Download Datasheet
PM-15I Datasheet (PDF)Installation & Operation
- Place unit near target area or connect to ducting for directional delivery
- Connect to direct water line for continuous operation
- Set target RH (if auto control is installed) and verify mist distribution
- Routine maintenance: clean tank/atomizers per local water quality
Contact
Fill in the key parameters below. You can send by Email, WhatsApp, or copy the message for any channel.
Project Details
Operating Conditions
Tip: For faster selection, include a simple floor plan or site photos.
