Overview
What problems it solves
- Reduce static electricity in electronics & precision manufacturing
- Prevent drying, cracking, and deformation of hygroscopic materials
- Support dust suppression and product surface quality
- Stabilize production conditions for repeatable output
Why ultrasonic (industrial-grade)
- Energy-efficient atomization with fine mist distribution
- Fast response for RH control in localized production zones
- Low noise, suitable for working environments
Buyer note: If your workshop has strong ventilation or open doors, ask us about ducting / multi-outlet layouts to avoid mist loss.
Best-Fit Applications

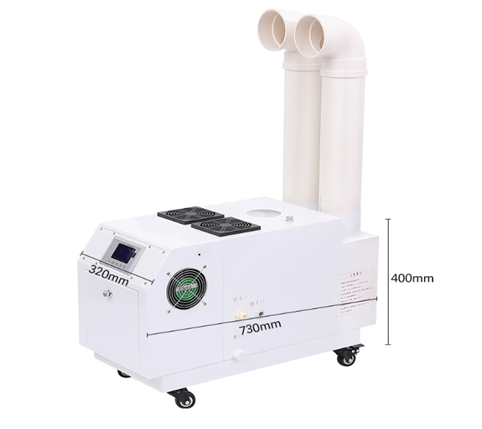

PM-12IF is an industrial ultrasonic humidifier rated at 12 L/h, designed for stable RH control in 120-180 m² environments. It features intelligent control and flexible pipe/tank supply for retrofit sites—ideal for production areas where humidity stability impacts quality and yield.
Typical Applications
- Textile production lines
- Electronics assembly areas (ESD control)
- Printing & packaging workshops
- Mid-size warehouses
- Projects requiring automatic RH control & monitoring
Engineering Notes
- Coverage 120-180 m² assumes typical ceiling height and moderate ventilation; high air exchange may require higher capacity or multi-unit layout.
- For frequent door opening / strong exhaust, consider ducting outlets to reduce mist loss and improve uniformity.
- For multi-zone workshops, a zoning layout (multiple units) provides better stability than oversizing a single unit.
Related Industry Solutions
Compare & Upgrade Path
If your site has higher ceilings, frequent door opening, or strong exhaust, consider upgrading capacity or using a multi-unit layout.
Technical Specifications
| Humidification Capacity | 12 L/h |
| Recommended Coverage Area | 120–180 m² |
| Rated Power | 1600 W |
| Control Mode | Intelligent Humidity Control |
| Water Supply Method | Piped water supply & External tank |
| Mist Outlet Diameter | 2 × 110 mm |
| Maximum Duct Length | 13–16 m |
| Dimensions (L×W×H) | 730 × 320 × 400 mm |
| Net Weight | 32 kg |
| Atomizing Heads | 4 × 10 heads |
Note: Applicable area varies with ceiling height, ventilation, and target RH.
Typical Applications
Industries
- Electronics & precision manufacturing
- Textile & garment
- Printing & packaging
- Warehousing & storage
Use cases
- Static control in assembly lines
- Material conditioning & moisture stability
- Dust suppression in production zones
- Storage protection for moisture-sensitive goods

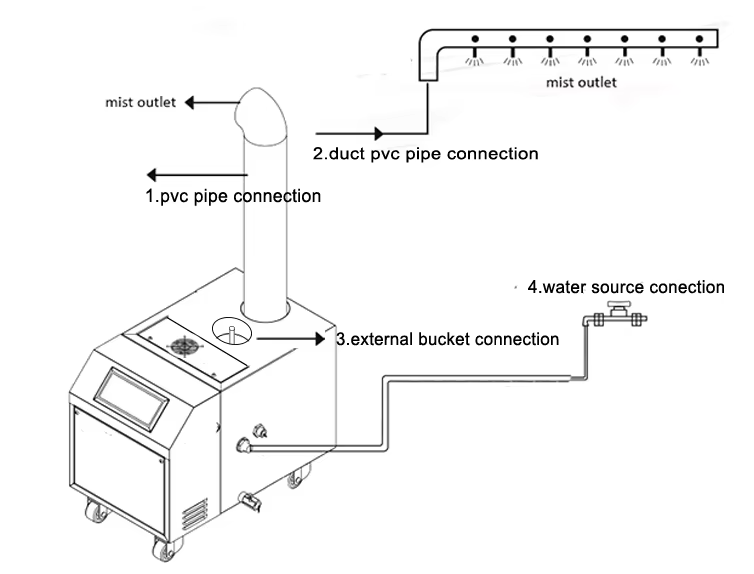

Installation & Operation
- Place unit near target area or connect to ducting for directional delivery
- Connect to direct water line for continuous operation
- Set target RH (if auto control is installed) and verify mist distribution
- Routine maintenance: clean tank/atomizers per local water quality
Engineering Selection Guide
Choose PM-12IF (Intelligent) if your space is roughly 120–180 m² and needs stable RH control.
- If ceiling height is above 5 m, or doors are frequently open → consider upgrading capacity
- If you need multi-zone control → ask for multi-unit layout or central control
- If the environment has strong exhaust/air-exchange → consider ducting outlets
Not recommended for
- Spaces significantly larger than 120–180 m² without multi-unit configuration
- Open areas with heavy ventilation where mist cannot be retained
- Applications requiring steam humidification
Request a Quote / Talk to an Engineer
Send: room size (L × W × H), current RH, target RH, ventilation/exhaust, and your process.
