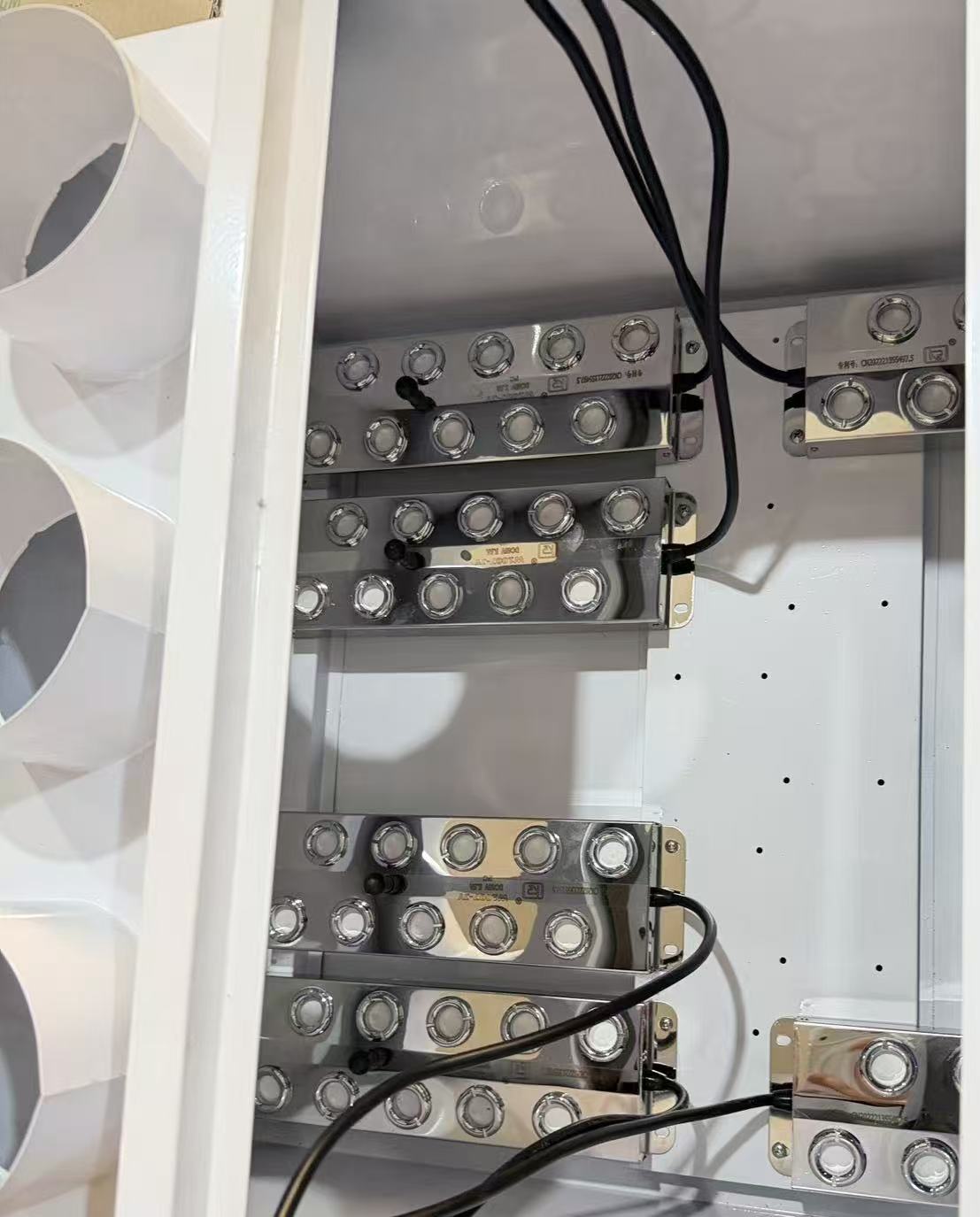

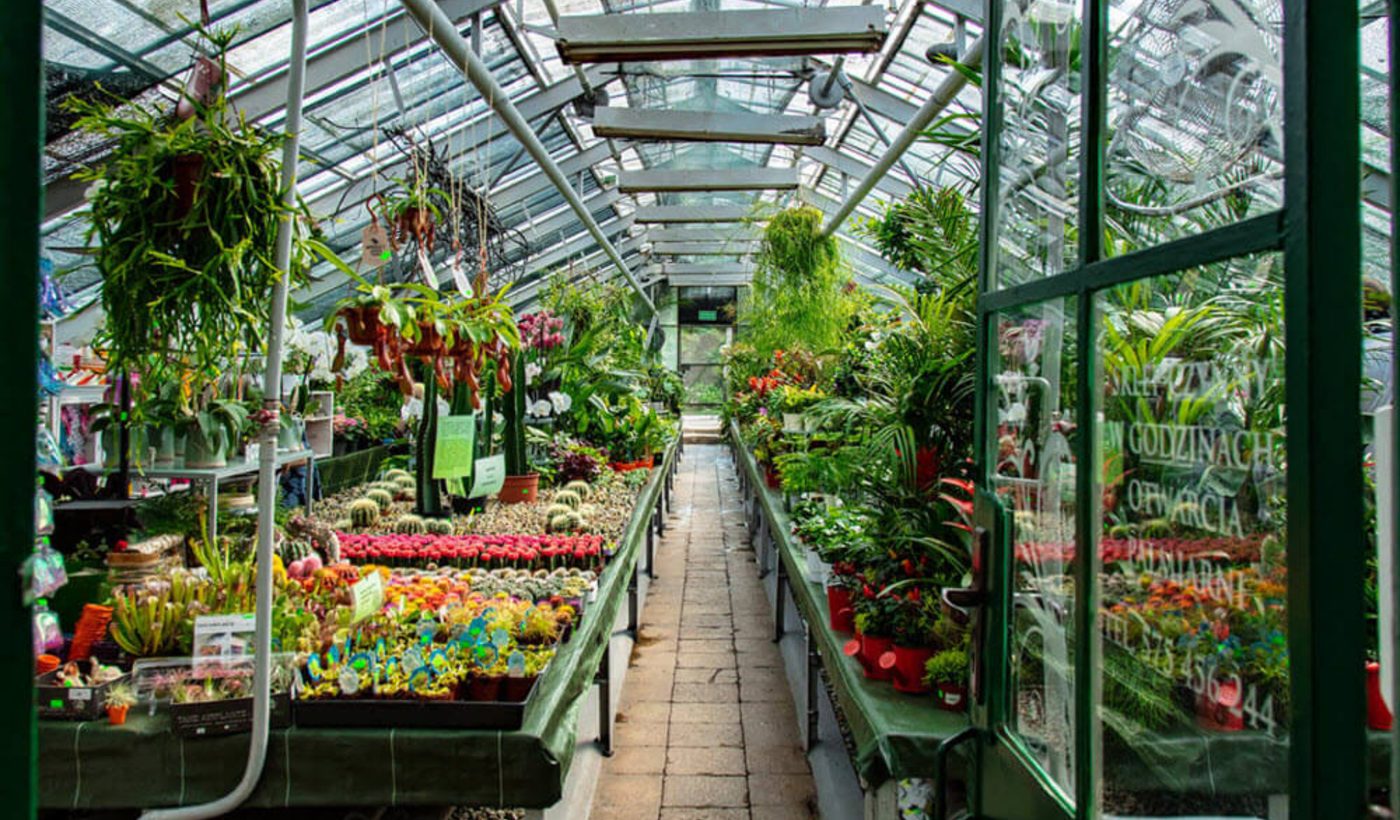

Ultrasonic mist maker modules are the core component inside many industrial humidification systems. We supply practical module options for OEM manufacturers and system integrators working on greenhouse, textile, electronics, and environmental-control projects.
Sealed for wet environments.
Consistent atomization. Stable output.
Replaceable discs. Easy servicing.
Flexible head options. DC powered.
Fine mist / fast RH response
Anti-static / cabinets / OEM
For projects using weak acidic or weak alkaline solutions, MS modules can be supplied with glass-coated ceramic atomizing discs. This option is intended for better chemical resistance and longer service life compared with standard discs.
Common use cases include disinfection systems, electrolyzed water humidification, agricultural nutrient solutions, and industrial additive atomization. Please share the liquid type and concentration before final model selection.
Keep correct water level.
Use clean, filtered water.
Share tank size / airflow / RH.
Clean or filtered water is recommended. Hard water can be used for short periods, but mineral scale will shorten transducer life if the system is not cleaned regularly.
Yes. MS modules are designed for continuous humidification systems. For 24/7 use, keep the water level stable, use a suitable DC driver, and schedule regular cleaning.
Yes. The module needs a matched external DC driver. We can supply the driver together or confirm the electrical requirements for your own system design.
Typical output is about 400–600 ml/h per head under stable voltage, suitable water depth, and clean water conditions. Actual output can vary with water quality, airflow, and installation layout.
For weak acidic or weak alkaline liquids, optional glass-coated ceramic atomizing discs are available for improved corrosion resistance. The liquid type and concentration should be confirmed before production.
No. The ceramic disc is replaceable, so the whole module does not need to be replaced when the disc reaches its service life.
Yes. In OEM humidification and environmental-control equipment, buyers may use terms such as ultrasonic fogger module, water-based fog generator, or ultrasonic nebulizer unit for this type of 1.7 MHz atomizing module. PHIMAXX MS modules are designed for water atomization in industrial humidification systems, environmental chambers, and custom OEM equipment.

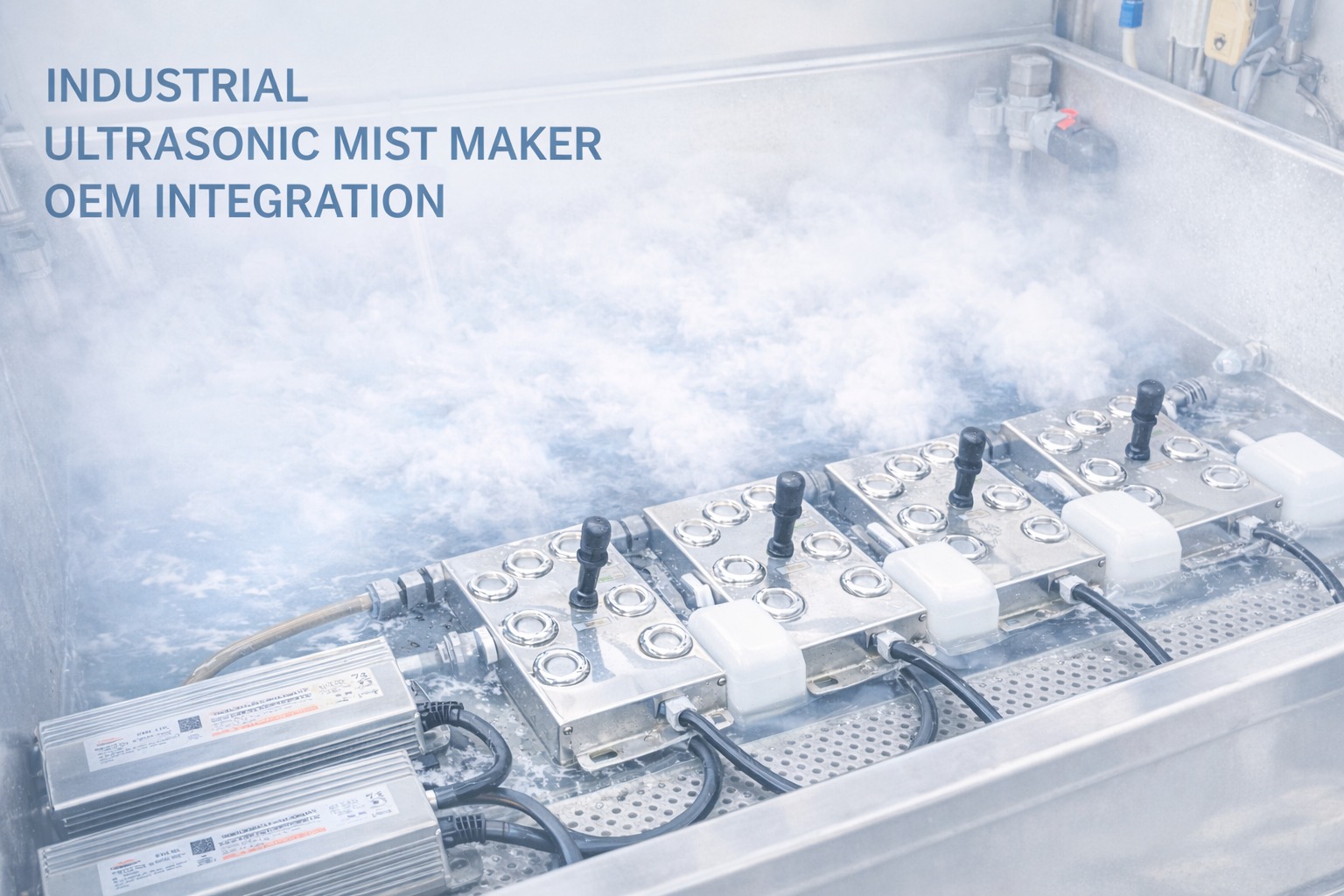

For an OEM ultrasonic humidifier or multi-head ultrasonic fogger project, provide the required mist output, head count, DC voltage, tank size, water depth, airflow, duty hours, and power-supply preference. PHIMAXX supplies 1.7 MHz IP67 ultrasonic mist maker modules with matched power supplies from 1 to 12 heads.
Under normal operating conditions, the ceramic discs typically provide around 5,000 working hours when clean water is used and the recommended water level is maintained. Actual service life depends on water quality, scale buildup, operating conditions, cooling, and cleaning frequency. Replace the discs when mist output becomes noticeably weaker or uneven after cleaning.
