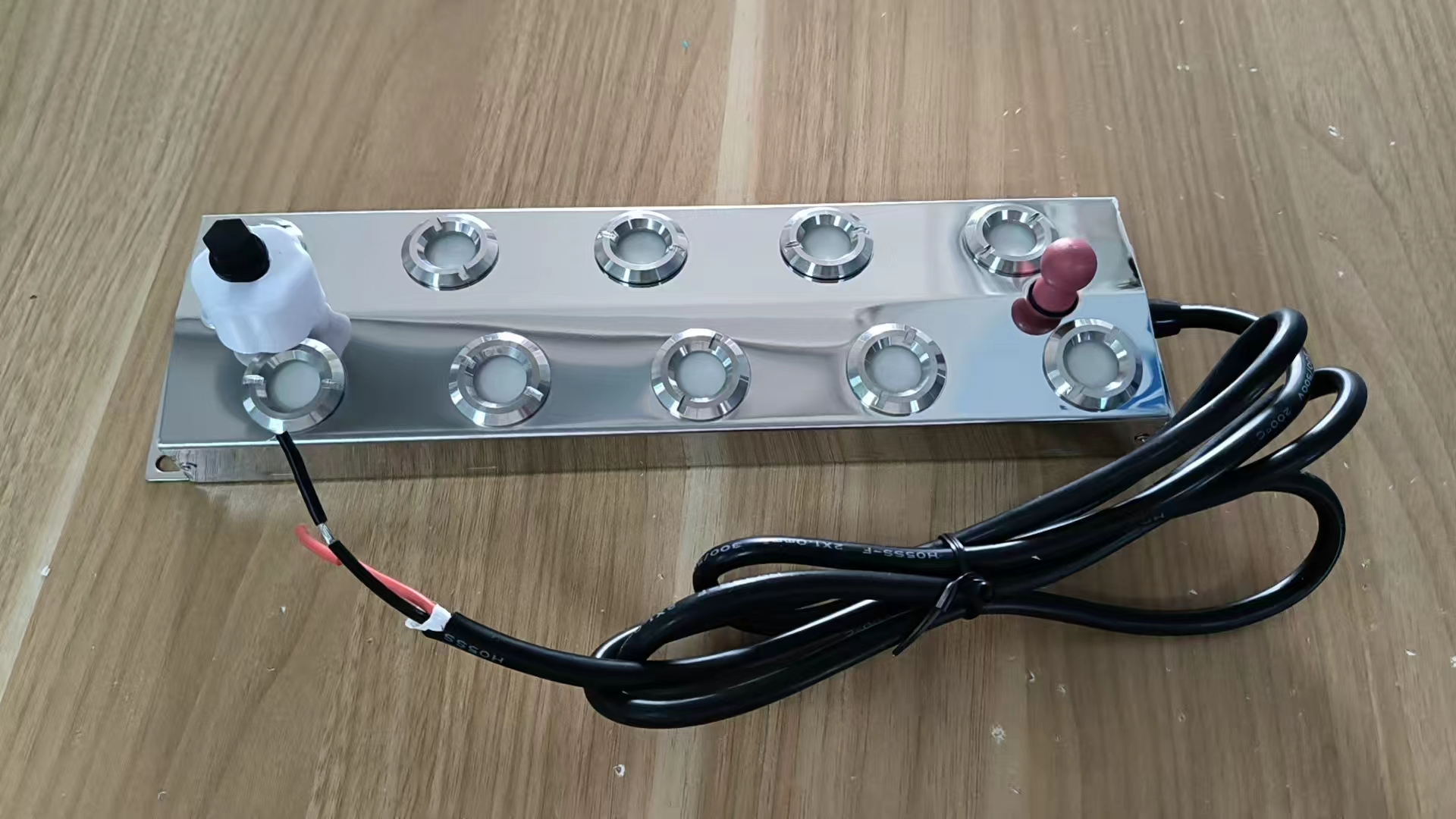

A ten-head 316 stainless steel ultrasonic atomizer for selected OEM liquid atomization applications. The polished housing and retaining rings are 316 stainless steel, with quartz-glass atomizing discs.
| Model | MS-10S316 |
|---|---|
| Atomizing heads | 10 |
| Housing and retaining rings | Polished 316 stainless steel |
| Atomizing discs | Ø20 mm corrosion-resistant quartz-glass discs |
| Operating frequency | 1.7 MHz |
| DC input range | 36–56 VDC |
| Current | 5.55–5.9 A |
| Power | 260–285 W, according to source specification |
| Atomization capacity | 5–7 L/h under standard conditions |
| Mist particle size | 1–10 μm |
| Operating liquid depth | 25–40 mm above atomizer surface; approximately 35 mm for finer mist |
| Liquid over-temperature stop | 45–55 °C |
| Disc service interval | 4,000–5,000 h, depending on liquid and operating conditions |
| Dimensions | 273.4 × 69 × 47 mm |
| Approximate weight | 0.97 kg; may vary by batch |
| Matched DC power supply | 400 W, supplied by factory; confirm output voltage on unit label |
| Cable | 1.5 m, 2 × 1 mm² silicone-insulated copper wire |
| Water-level control | Mechanical float plus capacitive dry-run protection |
| Certification and protection | CE; IP67 |
Use the correct polarity (red positive, black negative). Maintain a stable liquid level, allow ventilation and clean the module regularly. Atomizing discs are consumable parts.
The matched DC power supply is 400 W. Confirm the output voltage on the supplied unit label before installation.

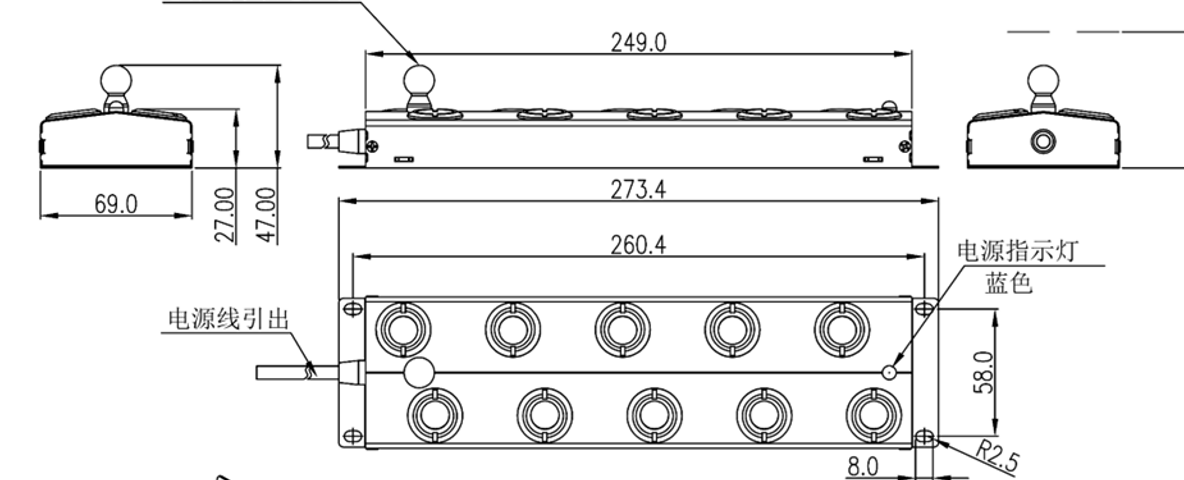

Dimensions are in millimetres. Refer to the datasheet for installation details.
Corrosion-resistant design for selected liquid atomization applications.
The datasheet lists low-concentration disinfectants, saline, tap water and purified water as possible applications; suitability must be checked for the particular liquid.
Actual chemical compatibility depends on liquid composition, concentration, temperature and operating conditions. Sample testing under actual conditions is recommended.
Share the formulation and concentration. Test a sample under your actual operating conditions before production use.
Yes. They are consumable parts; refer to the service interval in the technical specifications.
