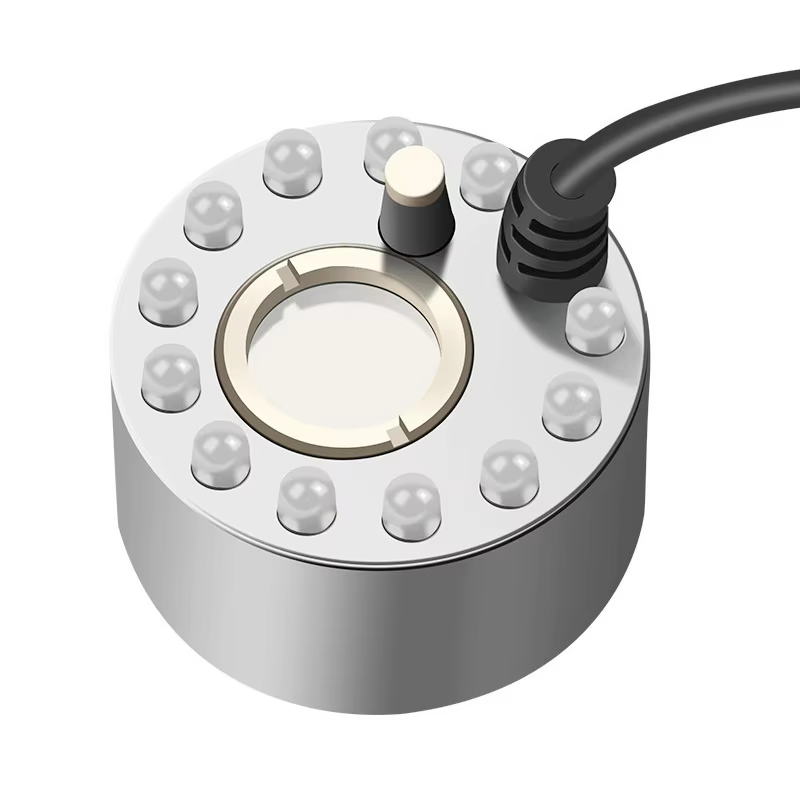

| Model | MS-01 |
|---|---|
| Continuous Output | 0.5-0.7 L/h |
| Typical Output | 0.4–0.6 L/h per head |
| Operating Frequency | 1.7 MHz ±5% |
| Input Voltage | DC 24V |
| Power Consumption | 50 W |
| Recommended Operating Water Level | 30–35 mm above the ceramic disc surface. Total tank depth may vary with the float assembly and tank design. |
| Output Stability | Stable for continuous operation |
| Typical Droplet Size (SMD) | 1–10 μm, depending on water quality, operating conditions and measurement method. |
| Waterproof Rating | IP67 (304 Stainless Steel Housing) |
| Continuous Duty Operation | Suitable for continuous-duty operation when correct water level, water quality, cooling and regular maintenance are maintained. |
| Ceramic Transducer Lifetime | 3500 - 5000 hours (clean water conditions) |
| Certification | CE Certified (EMC & LVD compliant) |
| Dimensions (L×W×H) | 46 x 46 x 35 mm |
| Typical Coverage Area | 0.5-1 m² |
| Coverage Note | For preliminary reference only. Actual coverage depends on ceiling height, ventilation, current and target RH, airflow and installation layout. |
| Net Weight | 0.2 kg |
For weak acidic or weak alkaline solutions, this model can be configured with glass-coated ceramic atomizing discs. The option is used when the application needs better corrosion resistance than a standard ceramic disc.
Suitable examples include electrolyzed water, disinfection systems, agricultural nutrient solutions, and some industrial additive mixtures. Please confirm the liquid type and concentration before ordering.
Clean or filtered water is best. Hard water may work for short-term testing, but scale buildup can reduce output and shorten transducer life.
Yes. The module is designed for continuous operation when the water depth, driver, cooling, and cleaning schedule are properly managed.
Yes. A matched external DC driver is required. We can provide it together with the module if needed.
Typical output is around 400–600 ml/h per head under stable voltage, clean water, and recommended water depth.
Yes, with the optional glass-coated ceramic atomizing disc. Please confirm the liquid type and concentration so we can check whether it is suitable.
No. The atomizing disc is replaceable, so routine service does not require replacing the whole module.
Yes. In OEM humidification and environmental-control equipment, buyers may use terms such as ultrasonic fogger module, water-based fog generator, or ultrasonic nebulizer unit. The MS-01 is designed for water atomization in industrial humidification systems, environmental chambers, and custom OEM equipment.
For an OEM project using the MS-01, provide the required quantity, tank size, water depth, airflow, duty hours, and power-supply preference. The MS-01 is a single-head 24 VDC module with a typical output of 0.5–0.7 L/h and can be supplied with a matched power supply.
Under normal operating conditions, the ceramic discs typically provide around 5,000 working hours when clean water is used and the recommended water level is maintained. Actual service life depends on water quality, scale buildup, operating conditions, cooling, and cleaning frequency. Replace the discs when mist output becomes noticeably weaker or uneven after cleaning.
