Technical Specifications
| Humidification Capacity | 24 L/h |
| Recommended Coverage Area | 280–310 m² |
| Rated Power | 3200 W |
| Control Mode | Intelligent Humidity Control |
| Water Supply Method | Piped water supply |
| Mist Outlet Diameter | 3 × 110 mm |
| Maximum Duct Length | 30–33 m |

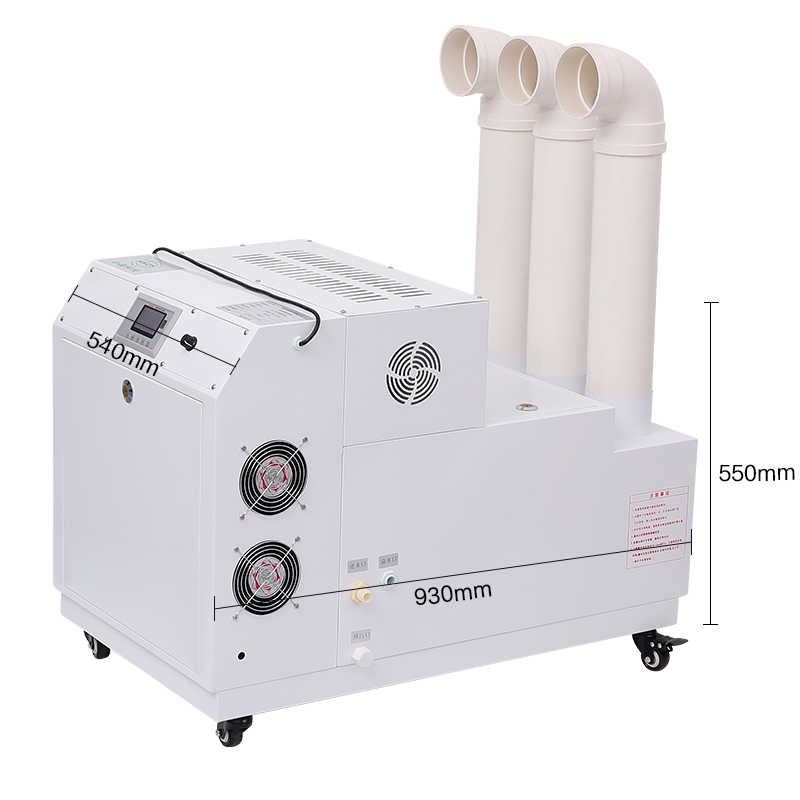

| Dimensions (L×W×H) | 930 × 540 × 550 mm |
| Net Weight | 62 kg |
| Atomizing Heads | 8 × 10 heads |
Note: Applicable area varies with ceiling height, ventilation, and target RH.
Installation & Operation
- Place unit near target area or connect to ducting for directional delivery
- Connect to direct water line for continuous operation
- Set target RH (if auto control is installed) and verify mist distribution
- Routine maintenance: clean tank/atomizers per local water quality
