10-Head Ultrasonic Mist Maker Module (MS-10)
MS Series • OEM Integration • IP67 • CE • 1.7 MHz

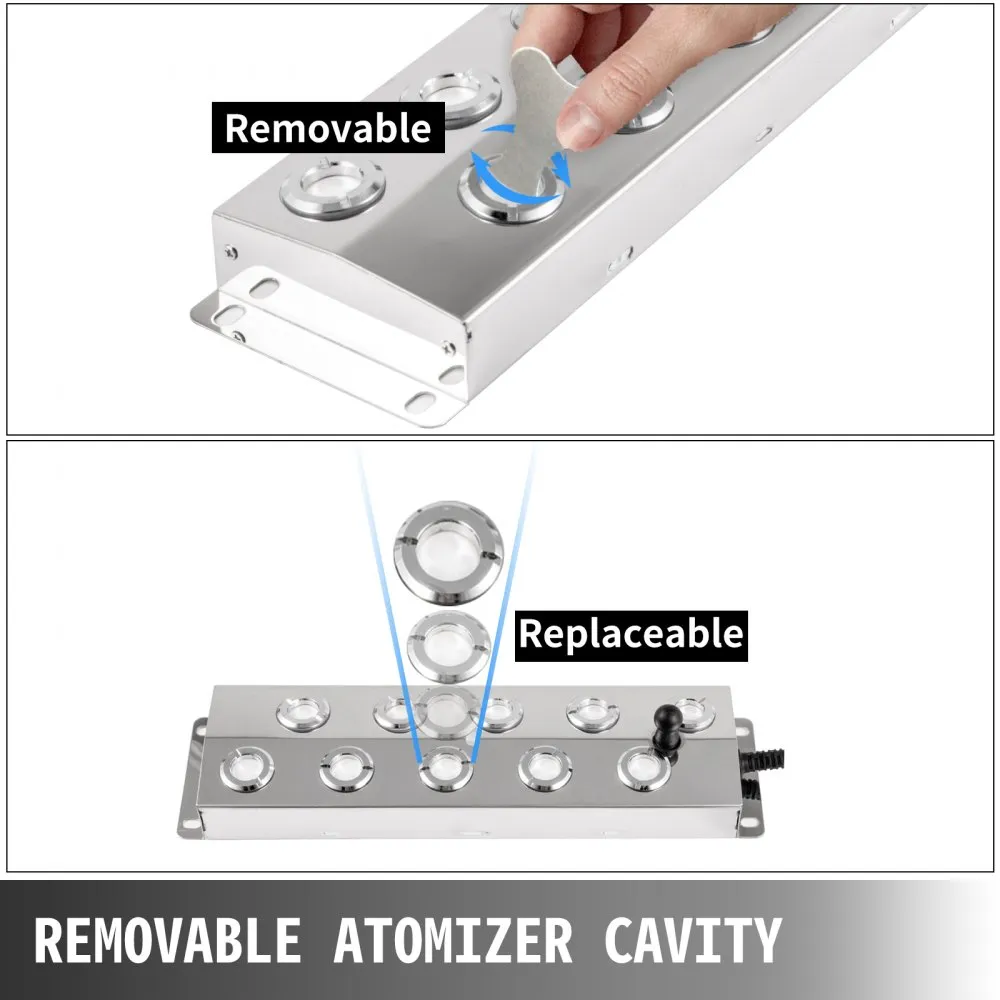

5–7 L/h • DC 45V • 350 W • Field‑serviceable (replaceable mist discs)
Request a Quote Talk to an Engineer Back to MS Selection
Switch Model:← PrevNext →
Mist Output
5–7 L/h
Input Voltage
DC 45V
Rated Power
350 W
Atomizing Heads
10
Product Images

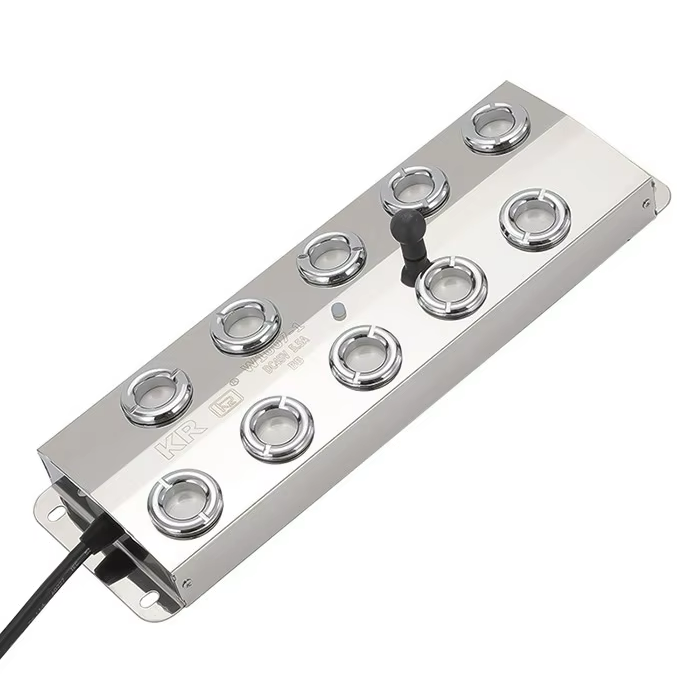

MS-10 ultrasonic mist maker module photo
Working Video

Key Performance (engineering)

  • System scale: Large zone / engineered manifold
  • Distribution: 8–10 outlets (multi‑zone manifold)
  • Best fit when: higher total demand and many outlets must be served from one tank
  • Upgrade path: MS‑12 for maximum margin and expansion headroom

Where MS-10 fits best

MS‑10 targets large manifold systems where one tank supports many outlets and the application requires higher moisture delivery with engineered distribution.
Multi‑zone manifolds (8–10 outlets)
One tank feeding many nozzles/ducts across multiple close zones.
Large production spaces (defined zones)
Maintain RH in higher‑volume areas with multiple outlet points.
Large grow rooms (high demand)
Fast RH ramp‑up and stable long‑run operation under higher load.

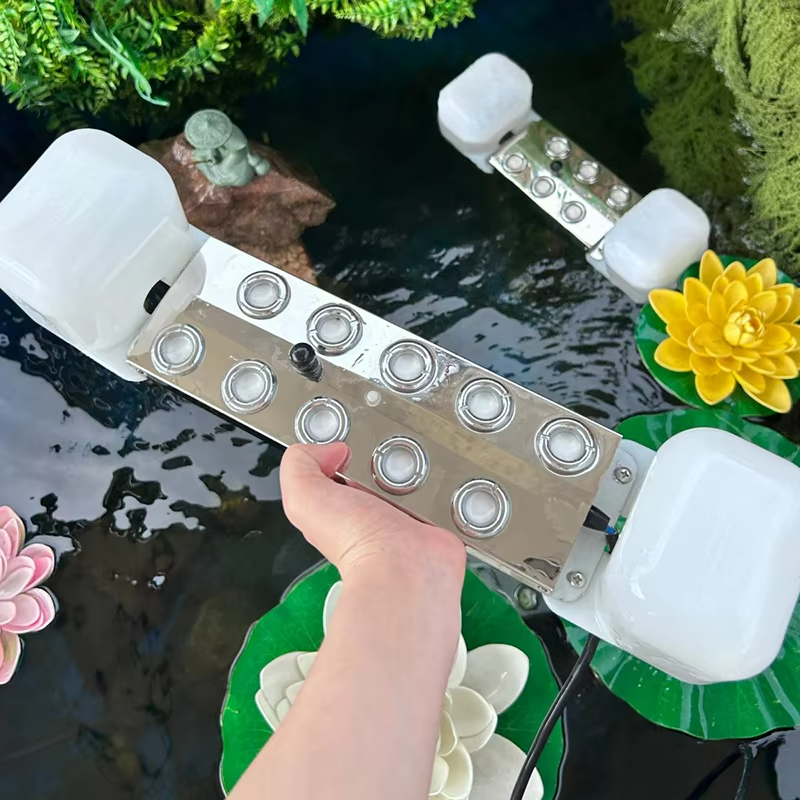

Industrial fog features (continuous)
High duty operation for engineered decorative or functional fog systems.
Tip: For maximum outlet count and the largest zones, step up to MS‑12.

Parameter Specification

ModelMS-10
Mist Output5–7 L/h
Operating Frequency1.7 MHz ±5%
Input VoltageDC 45V
Power Consumption350 W
Recommended Water Depth6 cm
Atomized Droplet Size (SMD)Typical ≤ 5 μm

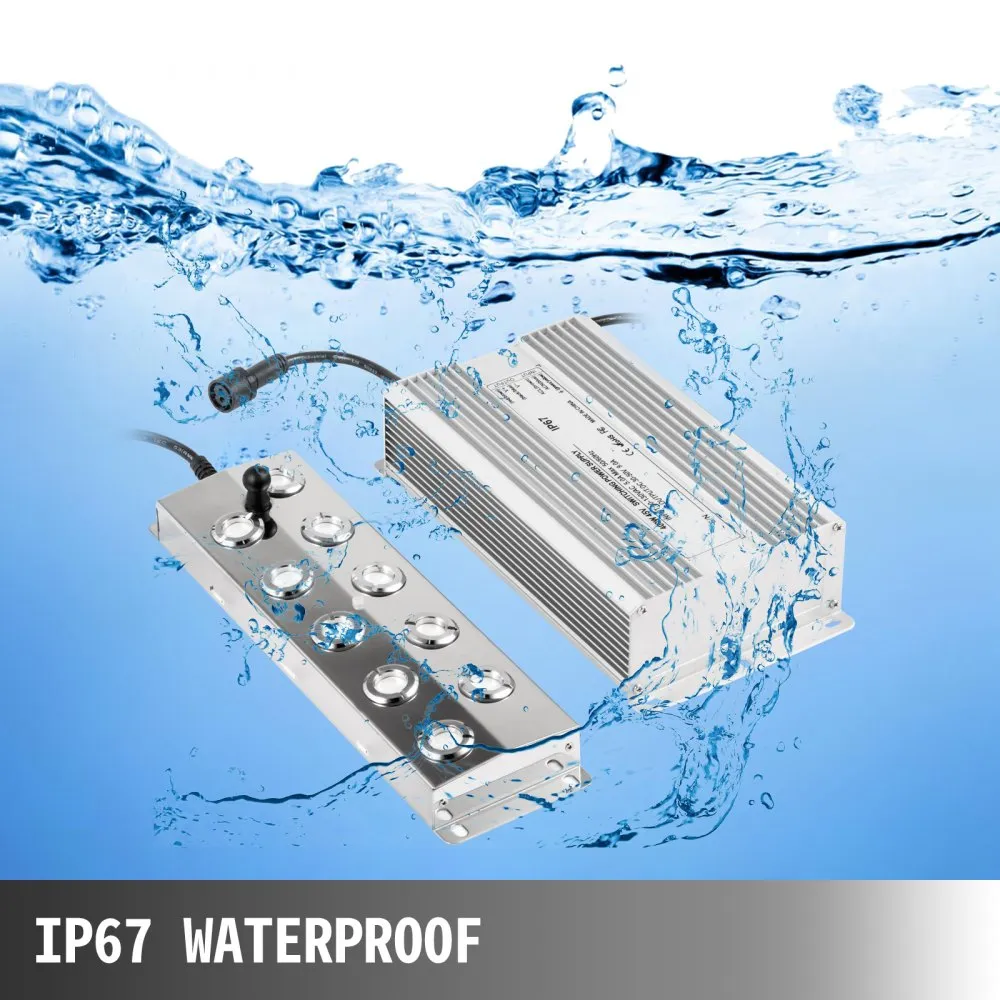

Waterproof RatingIP67 (304 Stainless Steel Housing)
Continuous Duty Operation24 hours supported
Ceramic Transducer Lifetime5000+ hours
CertificationCE Certified (EMC & LVD compliant)

Integration Notes (engineering)

  • Maintain the recommended water depth for stable atomization and consistent mist output.
  • Use clean water and include filtration to reduce scaling and extend transducer service life.
  • For manifolds/ducts: keep runs short where possible, avoid sharp bends, and balance branches for uniform delivery.
  • When designing multi‑outlet systems, specify target RH, airflow, tank size, outlet count, and duty hours—we can recommend the right model and layout.
Fast selection support: send tank size, water depth, airflow, target RH, outlet count, and duty hours — we’ll propose the right model and layout.
