12-Head Ultrasonic Mist Maker Module (MS-12)
MS Modules • OEM Integration • IP67 • CE • 1.7 MHz
6–7 L/h • DC 45V • 400 W • Field‑serviceable (replaceable mist discs)
Contact Us Email Sales Back to MS Selection
Switch Model:← PrevNext →
Continuous Output
6-7 L/h
Input Voltage
DC 45V
Rated Power
400 W
Atomizing Heads
12

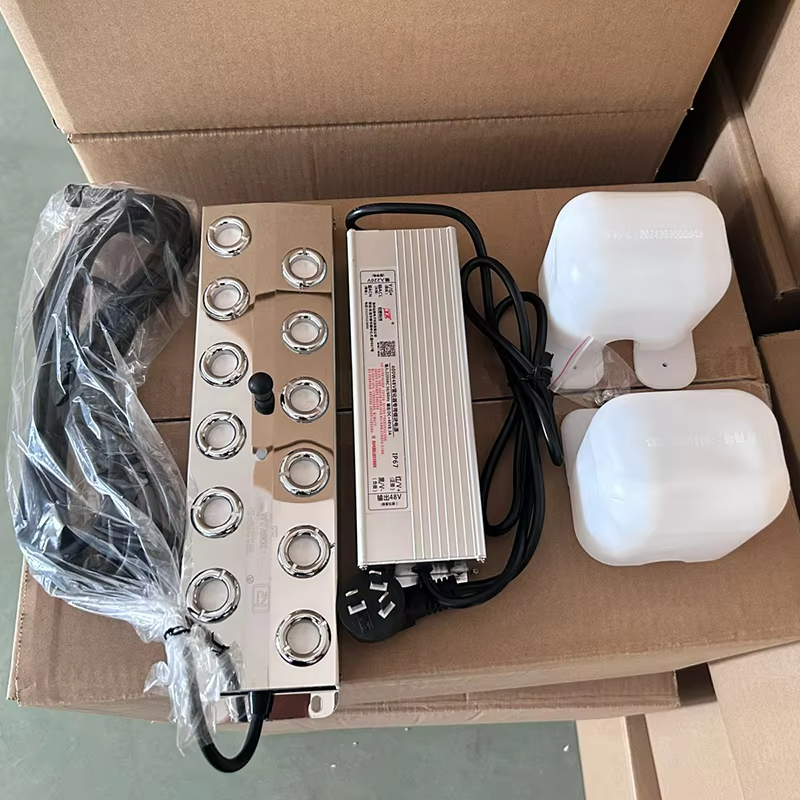

Product Images

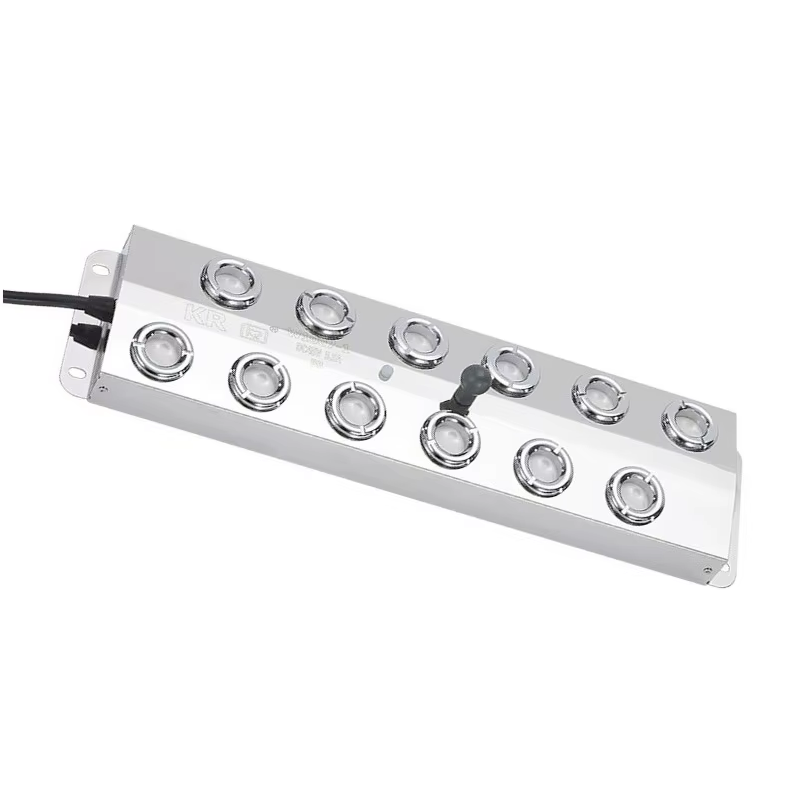

MS-12 ultrasonic mist maker module photo
Working Video

Key Performance

  • System scale: Highest load / engineered project
  • Distribution: 10–12 outlets (large multi‑zone manifold)
  • Best fit when: maximum outlet count, stability, and expansion margin are required
  • Upgrade path: Parallel modules (multi‑tank / redundancy) for very large projects

Where MS-12 fits best

Large multi‑zone manifolds (10–12 outlets)
Many branches / one tank
Large warehouse RH systems
High-volume spaces / target RH
Reliability / environmental test rooms (high load)
High-output / stable test use
Large grow facilities (high load)
Fast RH rise / continuous use
Tip: Designing a multi‑tank system or need redundancy? We can propose a staged layout with multiple modules.

Parameter Specification

ModelMS-12
Continuous Output6-7 L/h
Typical Output0.4–0.6 L/h per head
Operating Frequency1.7 MHz ±5%
Input VoltageDC 45V
Power Consumption400 W
Recommended Water Depth8 cm
Typical Droplet Size (SMD)≤ 10μm
Output StabilityStable for continuous operation
Waterproof RatingIP67 (304 Stainless Steel Housing)
Continuous Duty OperationDesigned for continuous 24/7 operation
Ceramic Transducer Lifetime3500 - 5000 hours (clean water conditions)
CertificationCE Certified (EMC & LVD compliant)
Dimensions (L×W×H)328 x 85 x 28 mm
Typical Coverage Area7-8 m²
Net Weight2.8 kg

Integration Notes

  • Maintain the recommended water depth for stable atomization and consistent mist output.
  • Use clean water and include filtration to reduce scaling and extend transducer service life.
  • For manifolds/ducts: keep runs short where possible, avoid sharp bends, and balance branches for uniform delivery.
  • When designing multi‑outlet systems, specify target RH, airflow, tank size, outlet count, and duty hours—we can recommend the right model and layout.
Selection support: send tank size, water depth, airflow, target RH, outlet count, and duty hours — we’ll propose the right model and layout.
Download Datasheet
MS-12 Datasheet (PDF)

Optional glass-coated disc for special liquids

For weak acidic or weak alkaline solutions, this model can be configured with glass-coated ceramic atomizing discs. The option is used when the application needs better corrosion resistance than a standard ceramic disc.

Suitable examples include electrolyzed water, disinfection systems, agricultural nutrient solutions, and some industrial additive mixtures. Please confirm the liquid type and concentration before ordering.

Weak acid / weak alkaliOptional configuration for suitable low-corrosion liquids.
Better durabilityDesigned to reduce corrosion risk in approved liquid conditions.
Serviceable designThe atomizing disc can be replaced during maintenance.
Pre-check requiredNot suitable for strong acids, strong alkalis, oils, solvents, or unknown mixtures.

FAQ

What kind of water should we use?

Clean or filtered water is best. Hard water may work for short-term testing, but scale buildup can reduce output and shorten transducer life.

Can it run continuously?

Yes. The module is designed for continuous operation when the water depth, driver, cooling, and cleaning schedule are properly managed.

Do we need an external driver?

Yes. A matched external DC driver is required. We can provide it together with the module if needed.

What is the output per head?

Typical output is around 400–600 ml/h per head under stable voltage, clean water, and recommended water depth.

Can it work with weak acidic or alkaline solutions?

Yes, with the optional glass-coated ceramic atomizing disc. Please confirm the liquid type and concentration so we can check whether it is suitable.

Is maintenance complicated?

No. The atomizing disc is replaceable, so routine service does not require replacing the whole module.
