24V, 36V and 45V Ultrasonic Mist Maker Modules: How to Choose the Right Voltage
For ultrasonic mist maker modules, voltage is not just an electrical label. It affects module size, power supply selection, wiring distance, current load, heat, system stability and how easily the module can be integrated into OEM equipment.
PHIMAXX MS modules use 24V, 36V or 45V depending on the model and head count. The correct question is not which voltage is “better”, but which voltage is specified for the selected module and matched power supply.
Quick answer: MS-01 uses 24V; MS-02, MS-03, MS-04 and MS-06 use 36V; MS-08, MS-10 and MS-12 use 45V. Always confirm the exact module model before selecting the driver.
Why voltage matters
An ultrasonic module needs a driver or power supply that matches its working voltage and power requirement. If the power supply is not properly matched, the module may show weak mist output, unstable operation, overheating or premature failure.
Voltage also affects wiring. For the same power, a lower voltage system carries higher current. Higher current means thicker wires, more voltage drop and more attention to connectors. A higher voltage system can reduce current, but it still requires correct insulation, protection and driver selection.

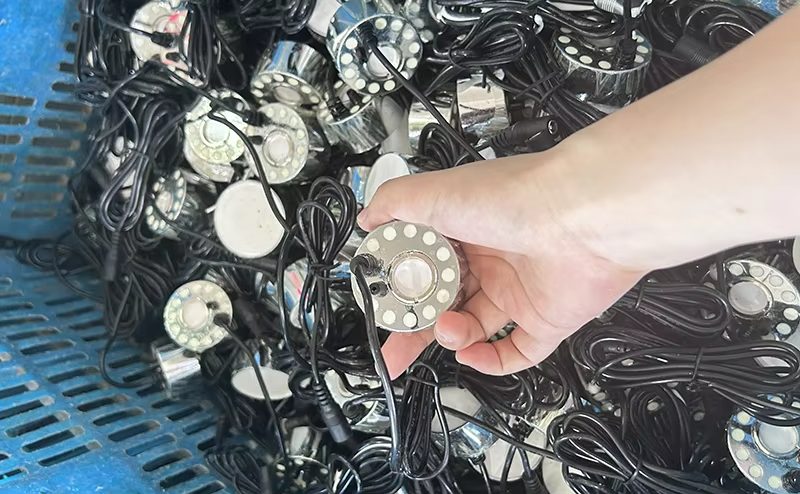

Typical use of 24V ultrasonic modules
PHIMAXX uses 24V for the compact single-head MS-01 module. It is suitable for small OEM equipment, short wiring distances and lower-output applications when used with the matched 24V driver.
Typical use of 36V ultrasonic modules
PHIMAXX uses 36V for MS-02, MS-03, MS-04 and MS-06 modules. These models cover compact and medium-output systems and must be paired with the corresponding 36V power supply.
Typical use of 45V ultrasonic modules
PHIMAXX uses 45V for MS-08, MS-10 and MS-12 modules. These higher-head-count models require a matched 45V power supply sized for the exact module load and operating conditions.
Comparison table
| Voltage | PHIMAXX models | Typical system direction |
|---|---|---|
| 24V | MS-01 | Single-head, compact OEM equipment and lower-output systems. |
| 36V | MS-02 / MS-03 / MS-04 / MS-06 | Compact to medium-output multi-head systems. |
| 45V | MS-08 / MS-10 / MS-12 | Higher-output and higher-head-count systems. |
| Power supply matching | Voltage, rated power, connector and module load must all match. | |
Do not mix module and power supply casually
The module and power supply should be treated as a matched set. Never connect a 24V, 36V or 45V module to a driver with a different output voltage, even if the connector looks similar.
For stable operation, check output voltage, rated current, total load, waterproof rating if required, and whether the power supply is designed for the module type.
What about safety?
All PHIMAXX module voltages must be handled as part of a properly protected electrical system. Water, mist and electricity are close to each other in humidification equipment, so grounding, insulation, waterproof connectors and overload protection are important.
If the unit is used in a wet environment, waterproof power supplies and correct installation are necessary. IP rating should match the actual installation condition, not only the catalog requirement.
How voltage affects system layout
If the power supply is close to the module and the load is small, voltage selection may be simple. If the cable is long, the module is high-power, or several modules run together, wiring voltage drop becomes more important.
For larger systems, it is often better to use one matched power supply per module group instead of trying to power too many modules from one undersized supply.
Selection guide
Choose the module first
- Define the required mist output.
- Confirm the head count and tank layout.
- Check wiring distance and duty cycle.
- Use the voltage specified for that model.
Then match the power supply
- Confirm 24V, 36V or 45V output.
- Check rated power and continuous load.
- Confirm connector, polarity and cable length.
- Verify installation and cooling conditions.
Common mistakes
Choosing voltage before output
First decide the mist output and module size. Voltage should follow the module and system design, not the other way around.
Using a power supply with insufficient current
If the power supply cannot deliver enough current, mist output may become unstable. The driver may also overheat or fail.
Running long cables without checking voltage drop
Long cable runs can cause voltage drop. This is especially important at higher current.
FAQ
Is a higher voltage always better?
No. Use the voltage specified for the selected module. Voltage alone does not determine output or reliability.
Can I use a different-voltage power supply if the connector fits?
No. The module and power supply must match. Using the wrong voltage can damage the module.
Does higher voltage mean more mist?
No. Mist output depends on module design, number of atomizing heads, driver matching and water conditions. Voltage alone does not decide output.
Which voltage should I choose for multiple modules?
It depends on total load, wiring distance and power supply arrangement. Use matched supplies and avoid overloading one driver.
